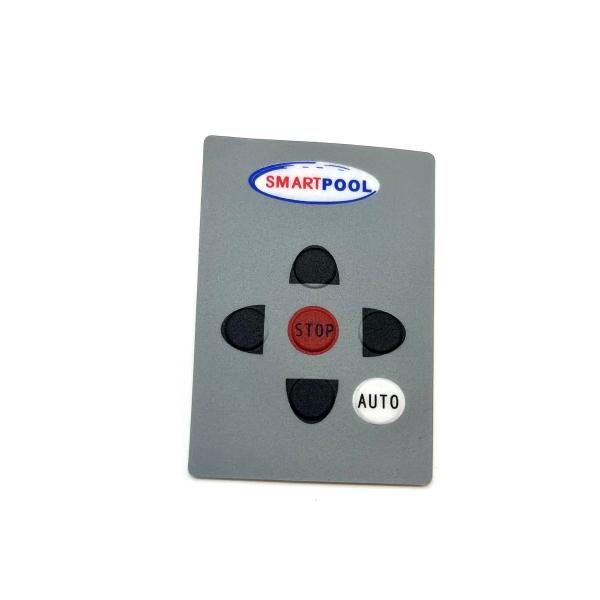

Custom Design Waterproof PC Push Button Switch With Tactile
Embossing Domes
A custom-designed waterproof push button switch made from
polycarbonate (PC) with tactile embossing domes is perfect for
applications demanding durability, reliability, and user-friendly
interaction. This switch is engineered to withstand harsh
conditions while providing a satisfying tactile response.
Key Features
Waterproof Construction
- IP67 Rating: Protects against dust and water immersion, making it
suitable for outdoor and industrial settings.
- Sealed Design: Effectively prevents moisture and contaminants from
entering the switch mechanism.
Material Quality
- Polycarbonate Housing: Offers high impact resistance and
durability, ensuring longevity in various environments.
- UV Resistance: The material is resistant to UV degradation,
maintaining appearance and functionality over time.
Customizable Design
- Shape and Size: Available in multiple configurations to match
specific product requirements.
- Color Options: Custom colors can be provided to align with brand
identity or aesthetic preferences.
Tactile Embossing Domes
- Enhanced Feedback: The domes provide tactile feedback, improving
user interaction and ensuring that users can feel the activation.
- Varied Hardness: Options for dome hardness to cater to different
user preferences and applications.
User-Centric Features
- Easy Installation: Designed for straightforward mounting and
integration into various devices.
- Labeling Options: Custom labeling available for functionality,
branding, or user instructions.
Applications
- Consumer Electronics: Ideal for devices that require user
interaction, such as household appliances and gaming controllers.
- Industrial Equipment: Suitable for machinery controls in wet or
harsh environments.
- Automotive Applications: Can be integrated into vehicle dashboards
or control panels.
- Medical Devices: Perfect for user interfaces in medical equipment
requiring hygiene and reliability.
Customization Considerations
- Ergonomics: Design switches that are comfortable to use,
considering factors like button size and spacing.
- Aesthetic Integration: Ensure the switch design complements the
overall product design.
- Functionality: Determine the number of positions (e.g., momentary,
latching) based on the application needs.
- Environmental Needs: Assess specific environmental conditions
(e.g., temperature, exposure to chemicals) to ensure optimal
material selection
Specification:
| Overlay material ---For front or face overlay |
| Polyester | Polycarbonate |
1 Highly versatile for embossing
2 Highly resistant for chemicals
3 Better durability
4 For internal and external use | 1 wide range of the surface finishes and thicknesses
2 More cost-effective
3 For internal and external use
4 many Lexan label choose |
| Embossing --- Graphic overlay or up circuit can be embossed in order to insert
metal stainless steel domes for good tactile when press .Leave
space for mechanical keys and provide tactile indications |
| Pedestal embossing | Rim embossing | Pillow embossing | Dim embossing |
| Windows or LCD --- For display functions |
| Printed colors windows such like red ,black and so on | Transparent finishes windows |
| Keys |
| Tactile Keys :witch metal domes or Poly domes ,Metal dome with
different diameter and pressure kinds | Non-tactile keys: printed silver spot on the circuit |
| LEDs ---Miniature LEDs ,LED colors :white ,Green ,Red ,Blue ,Yellow ,Orange
and others |
| EL and Sensors or inductors --- EL can be light any place where where you like ,and sensors can be
used as LEDs |
| Cables --- is extension of circuit and communication with your device |
| Screen printing conductive silver cable | Copper plated cable /Polyimide or FPC | PCB board |
| Types of connector --- 1 Zero insertion force(ZIF) with 0.3MM ,0.5MM ,1.0MM,1.25MM pitch
;2 Female connector with 2.54MM pitch; 3 Male connector |
| Shielding --- For protection function |
| Gasket seal/Waterproof :protect the conductors against from the
humidity and splashes | EMI/RFI/ESD Shielding: use an Aluminum foil shielding /clear ITO
electrical conductive polyester to protect |
| Rear Adhesive --- Mostly use the 3M double-side mounting glue brand of USA. Also
accepted others such like Lohmann and others |
| Back plate --- Use in Aluminum ,Polycarbonate ,Acrylic Or PMMA |
| Matching color --- PMS or RAL Is best ,CMYK or RGB also can be ok if you can
supply PMS Or RAL |
| Standard Tolerances :+/-0.2MM |
Structure show :
Another photo show :
FAQ:
Q1. What information will I have to provide for price?
A:To offer the exact price, we hope customers could inform us the
material, specification as thickness, size, with adhesive or not,
how many colors for printings, contact details, quantity required,
Size and Shape with artwork files.
Q2. What is your terms of packing?
A:Generally, we pack our goods in neutral white boxes and brown
cartons. If you have legally registered patent, we can pack the
goods in your branded boxes after getting your authorization
letters.
Q3. What is your terms of payment?
A:T/T 30% as deposit, and 70% before delivery. We'll show you the
photos of the products and packages before you pay the balance.
Q4. How about your delivery time?
A: After the engineering drawing is confirmed, the sample will be
completed in 5 days, and after the sample is confirmed, the mass
goods will be completed in 10 days.The specific delivery time
depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We
can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but
the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q8: How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our
customers benefit ;
2. We respect every customer as our friend and we sincerely do
business and make friends with them, no matter where they come
from.
