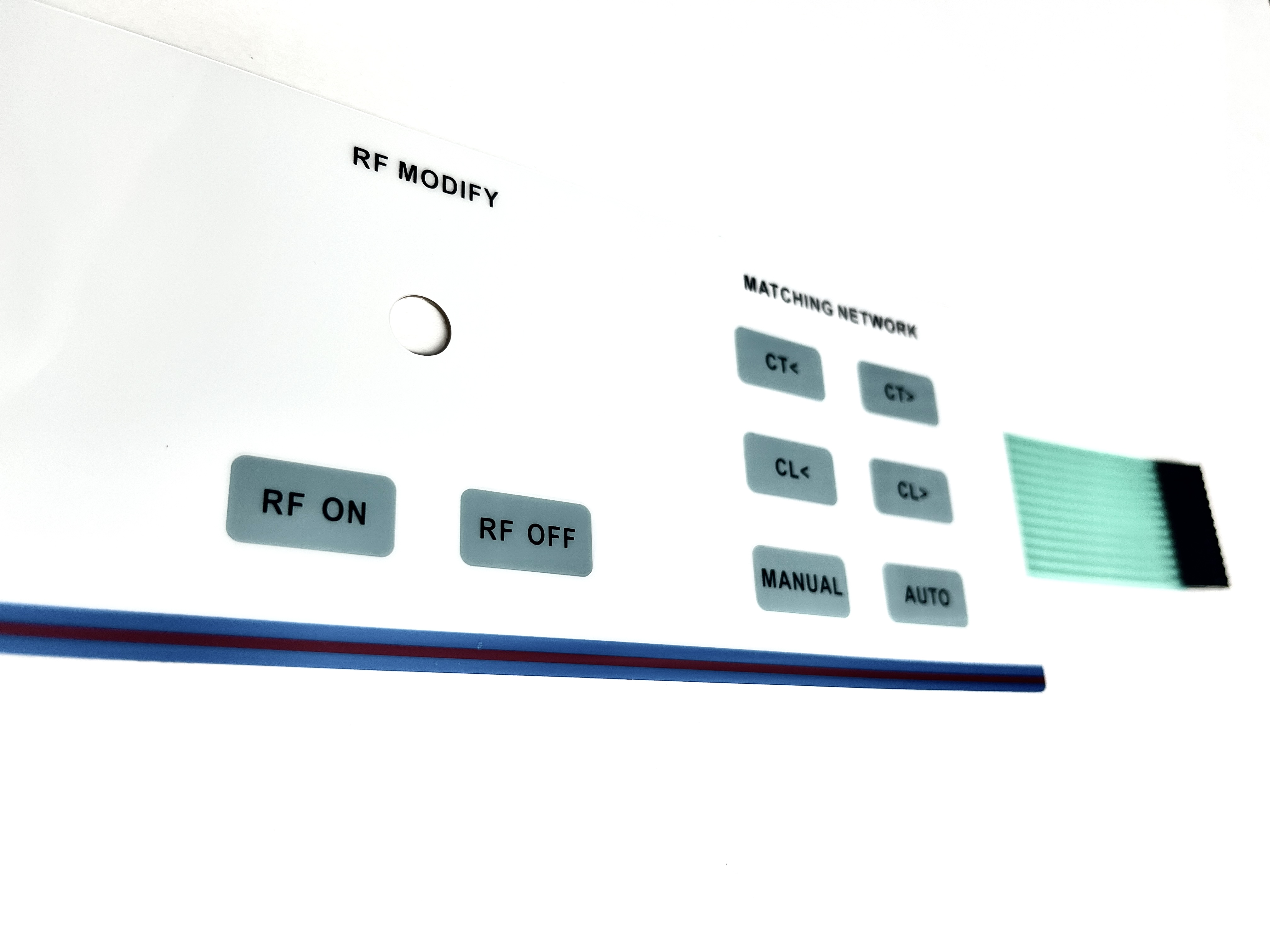

Customized Size Flat Push Button Membrane Switch With 2.54MM Female
Connector Houdsing
A flat membrane switch is a type of input device that features a
smooth, flat surface without any protruding or raised elements.
This design provides a minimalist and streamlined appearance while
still maintaining the functionality of a traditional membrane
switch.
Key characteristics of a flat membrane switch include:
Flat Surface:
The top layer of the membrane switch is designed to be completely
flat, without any buttons, domes, or embossed elements.
This flat surface creates a smooth, seamless appearance and feel.
Membrane Switch Structure:
Beneath the flat surface, the flat membrane switch follows the
typical membrane switch design.
It consists of multiple layers, including a protective top layer, a
membrane switch layer, and a printed circuit board (PCB) layer.
Specification:
1.Overlay Materials: The most commonly used materials are polyester(PET) and
polycarbonate(PC)/Lexan
a, polyester (PET )----mostly used ,having advantage in life
cycles: 1,000,000 cycles
b, polycarbonate (PC)-----pricing advantages, life cycles:40,000
cycles
2. Rear Adhesive: 3M 467MP, 3M 468MP, 3M9448Mp,Lohmann adhesive etc
3. Matching color: Pantone and RAL color matching system.
4 .Surface finish:Glossy, semi-glossy or matt
5. Key effect :Non-tactile,poly dome ,metal dome or silicone rubber
tactile feedback: ----metal dome inside for crisp tactile feedback
----polyester dome with emboss
a, plateau embossing----keys that rasied and flat in the top
b, rim embossing ---only the border of a ket raised
c. hydroforming: standard tolerance: +-0.15"
6.Window:transprant LCD window or tinted window ,die cutting cutouts
7.LEDs:Led can be embedded for backlight
8.Standard Tolerances: +/-.010 inch (+/-0.2mm).
More photos show :
Payment Terms and Packing:
1. Payment: T/T, Western Union, or Paypal Accepted
2. MOQ: It is 100 pcs for membrane keypad ,It is 300-500 pcs For Graphic
overlay which based on graphic overlay process and cost
3. Warranty : we will be respectively to all of our product before your
testing all are not Good
4. Package Informations: 10-25 pcs per PE bag which is based on the product feature and
Foam around Bags ,Then in Carton The carton box size is
15cmx25cmx30cm or others without any LOGO ,Or as per Customer
request .
Why do we choose Taida:
• We are the most professional membrane switch Manufacturer in
China
• Overall, close and long-term service, No matter for sales and
after-sales
• Taida spirit: Be responsible to every customer, Be responsible to
ourselves
We are with more than 10 experiences in Membrane switch field
• We are Alibaba Assessed 5 years Gold Supplier.
• 100% QC inspection Before Shippment.
About ShenZhen TaiDa Menbrane switch CO.,LTD
Taida are an OEM professional specializing in designing and
manufacturing membrane switch ,graphic overlay and adhesive
sticker/labels with with more than 15 years experience in Shenzhen
of China which are widely used in industrial,electronics,household
appliance,medical equipments.we have more than 500 different
customers .and most of our customer come from USA ,EU ,UK ,middle
east and other famous country of world wide.Taida can supply
different kinds of Membrane switch based on each client's request .
Factory Strength:
Factory Area: Over 2000 Square meters
Employee :＞ 70
R＆D
Continued quality improvement ,professional Tech support and latest
design
From our R＆D department for customers’ demand or samples
Manufacturing
Strong productivity and unified producing process to ensure the
fastest delivery time.
QC/QA
20% Employee are QC/QA workers ,quality Guaranteed
Dispatch Department
Power dispatch ability to ensure shipping accuracy and speed
Sales ＆ Customers
Overall ,close and long-term service,No matter in saling and
after-sales
Many customers show in our company from worldwide
