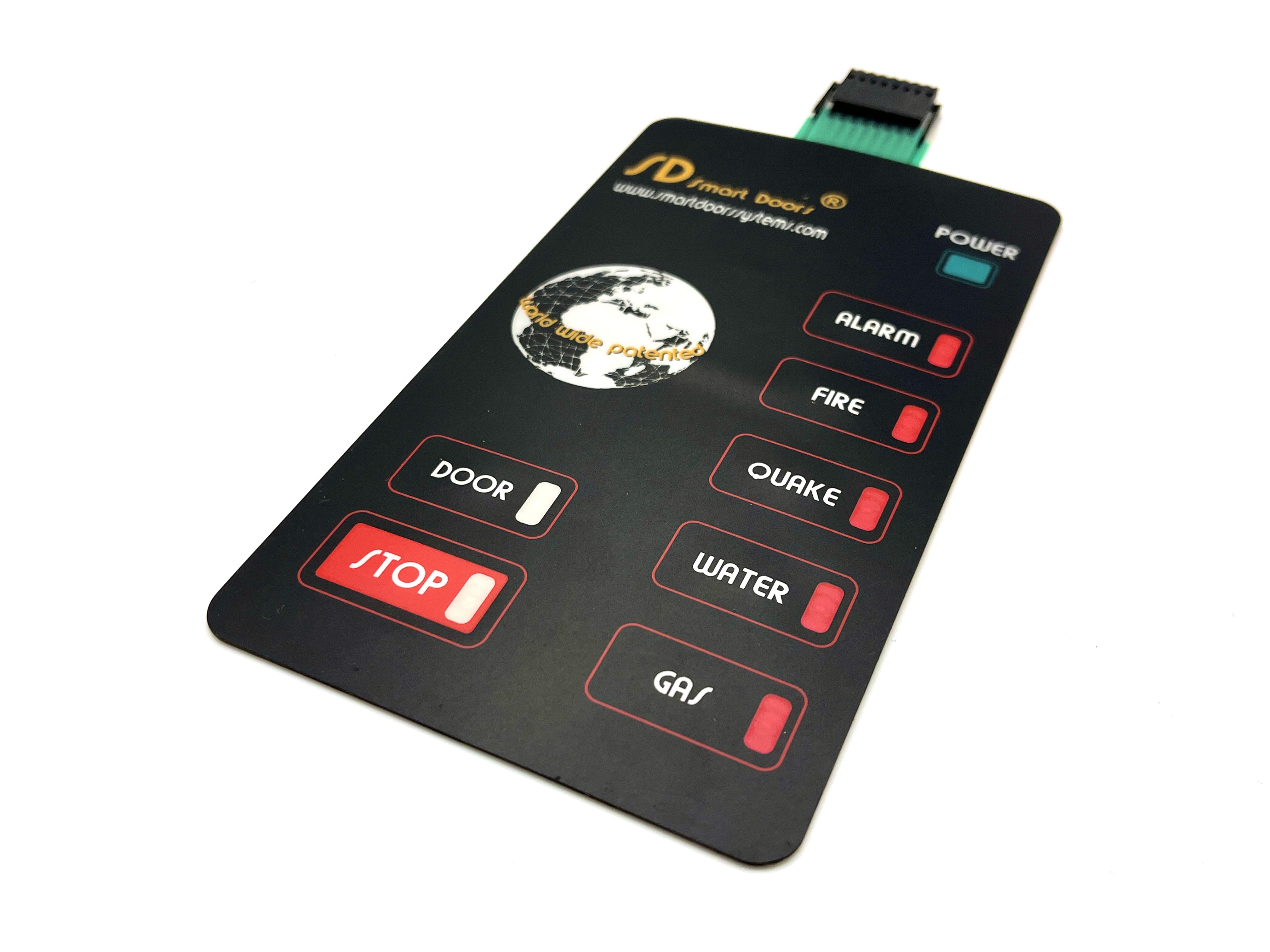

Polyester Female Connector Tactile Button Switch With LED Back Light

Specifications/Special Features:

LEDs welded on the flexible circuit layer make into the membrane switch. When several LEDs are assembled in the keypad, the LEDs should using 0805(0603) and the wiring of LED should be separated from lower circuit. Besides, the LED windows should be embossed. All of these details are making the construction stable. Using F200 matte PET makes the overlay looks graceful. The LED keypad are widely used as industrial control keypad, because of good tactile buttons, powerful functions. The membrane switch can be customized based on customer's design such as button icons, colors etc. The main characters are printed wiring, low resistance and function well. The item with strong function is able to weld with colorful LEDs, adopting waterproof circle structure with strong adhesive. So all buttons are suitable for high air humidity environment.

Flat Membrane Switches specifications:

Overlay material ---For front or face overlay
Polyester						Polycarbonate
1 Highly versatile for embossing 2 Highly resistant for chemicals 3 Better durability 4 For internal and external use						1 wide range of the surface finishes and thicknesses 2 More cost-effective 3 For internal and external use 4 many Lexan label choose
Embossing --- Graphic overlay or up circuit can be embossed in order to insert metal stainless steel domes for good tactile when press .Leave space for mechanical keys and provide tactile indications
Pedestal embossing	Rim embossing		Pillow embossing				Dim embossing
Windows or LCD --- For display functions
Printed colors windows such like red ,black and so on					Transparent finishes windows
Keys
Tactile Keys :witch metal domes or Poly domes ,Metal dome with different diameter and pressure kinds					Non-tactile keys: printed silver spot on the circuit
LEDs ---Miniature LEDs ,LED colors :white ,Green ,Red ,Blue ,Yellow ,Orange and others
EL and Sensors or inductors --- EL can be light any place where where you like ,and sensors can be used as LEDs
Cables --- is extension of circuit and communication with your device
Screen printing conductive silver cable		Copper plated cable /Polyimide or FPC						PCB cable
Types of connector --- 1 Zero insertion force(ZIF) with 0.5MM ,1.0MM,1.25MM pitch ;2 Female connector with 2.54MM pitch; 3 Male connector
Shielding --- For protection function
Gasket seal/Waterproof :protect the conductors against from the humidity and splashes				EMI/RFI/ESD Shielding: use an Aluminum foil shielding /clear ITO electrical conductive polyester to protect
Rear Adhesive --- Mostly use the 3M double-side mounting glue brand of USA. Also accepted others such like Lohmann and others
Back plate --- Use in Aluminum ,Polycarbonate ,Acrylic Or PMMA
Matching color --- PMS or RAL Is best ,CMYK or RGB also can be ok if you can supply PMS Or RAL
Standard Tolerances :+/-0.2MM

Flat Membrane Switches Performance Index:

Environmental	Operating Temperature	-40°C to +80°C (-40°to 176°F)
	Storage Temperature	-40°C to +85°C (-40°to 185°F)
	Humidity	40°C, 90% to 95% for 240 hours
	Vibration	20G's max.
Mechanical	Actuation Force	Non-tactile 60g to 300g (2oz to 10oz)
		Tactile 150g to 400g (6oz to 14oz)
	Switch Stroke	Non-tactile 0.1 to 0.5mm
	Life Expectancy	Tactile 0.6 to 1.5mm
		Non-tactile >5 million actuations
		Tactile >1 million actuations
Electrical	Operating Voltage	35 volts maximum
	Operating Current	10 micro amps to 100 milliamps, resistive
	Operating Power	1 watt maximum
	Circuit Resistance	10 ohms to 500 ohms, dependent on size and layout
	Insulation Resistance	100M ohms at 100V DC
	Dielectric Withstand	>250 VRMs (50-60Hz 1 minute)
	Contact Bounce	≤ 5 milliseconds
