Flexible Circuit 2 Membrane Switch Design For Emergency Remote Controller

Designing a membrane switch involves several key considerations. Here’s a brief overview of the process:

1. Define Requirements

• Functionality: Determine what the switch will control (e.g., lights, appliances).
• Size and Shape: Specify dimensions based on the application and available space.

2. Choose Materials

• Overlay Material: Common options include polyester and polycarbonate.
• Adhesive: Select an appropriate adhesive for bonding to surfaces.
• Circuit Material: Use conductive inks or printed circuits.

3. Design the Layout

• Graphics: Create visually appealing graphics that indicate function.
• Button Placement: Ensure buttons are easy to access and use.

4. Electrical Design

• Circuit Design: Create a schematic for the conductive paths.
• Switch Type: Decide between momentary or latching switches.

5. Prototype and Testing

• Create a prototype to test functionality and durability.
• Conduct usability testing to ensure user-friendliness.

6. Finalize Production

• Choose a manufacturer for mass production.
• Ensure quality control measures are in place.

Tools and Software

• CAD Software: For designing layouts (e.g., AutoCAD, SolidWorks).
• Graphic Design Software: For creating visuals (e.g., Adobe Illustrator).

Considerations

• Environmental Factors: Ensure the design can withstand exposure to elements.
• User Feedback: Incorporate user feedback in the design process.

Descriptions :

About Taida.pdf

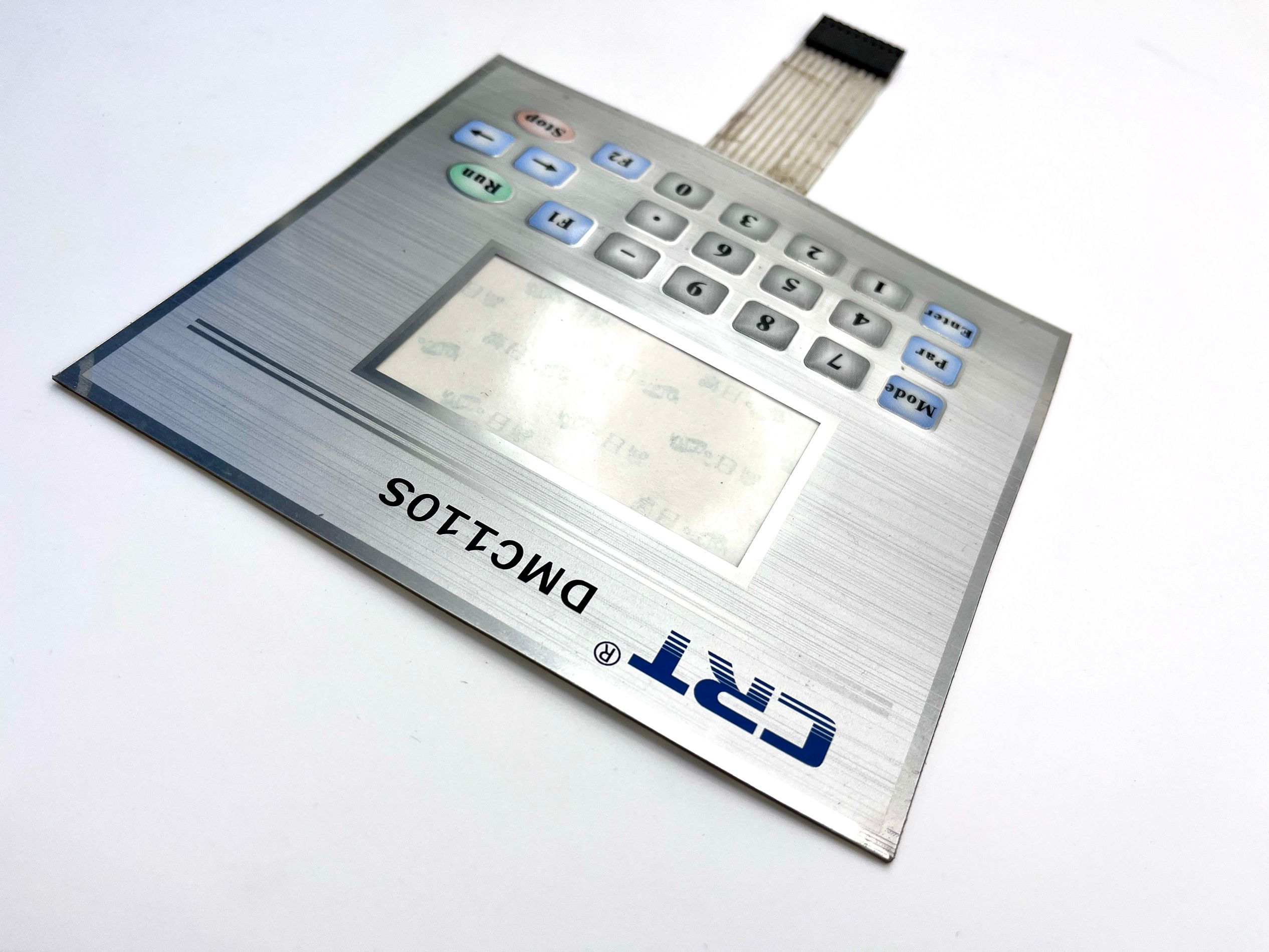

Other photo show :



Product Index:

Operating voltage: 35V DC

Operating current: 100mA 1W

Contact resistance: < 100 Ohms

Open circuit resistance: ≥ 10MΩ at 100V

Operating temperature: Flat/Metal dome:-20°c to +80°c

Storage temperature: Flat/Metal dome:-40°cto +80°c

Life expectancy Flat type≥5,000,000 times Tactile type≥1,000,000 times

Switch stroke: 0.1 to 0.6mm

Contact bounce: 5 to 30ms

Actuation force tolerance: +/- 20 to 45g

Tactile ratio: FC > 40%

Operating humidity: up to 95% RH





Shipping
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time:5-6 business days for samples; 8-13 days for batch goods.




How to order

• Send us the drawing ,spec or photo about your product or fill our quotation information table . Get Latest Quote
• Confirm order details and approved our artwork before sample ,confirm our sample before mass goods and Order PI will be sent
• we will send our artwork for your confirm within 3 days before sample making ,and sample lead time is 4-5 business days As usual .
mass goods :as common ,it is 7-10 business days ,which is based on our produce department schedule and product craft and order quantity

Taida is a factory and was founded in the 2010 year in China, which focus on the professional design and manufacture of Membrane Switch and Graphic overlays (including different many kinds membrane switch and graphic overlay ,such like LED ,FPC circuit ,waterproof and tactile ,PMMA ,protective film and so on )manufacturers,

Experience:

Taida and engineers have Highly over 15 years experienced on Membrane switch and graphic overlay designs, 500+ customers from worldwide such like USA,UK ,Germany and others , 1000+ new designs per year

Factory Strength and Production Capacity:

Over 2000 square meters of modern plant, spacious and bright clean workshop; more than 25 full Automatic and Semi-Automatic printing machine and other professional Automation equipment,such like testing machine ,UV machine and so on , Taida’ capability has reached 300, 000PCS/month in a very short period since company established.

Quality Control and Ensure :

Taida has got certification of ISO9001: 2000, and also the accreditation for RoHS ,REACH ,UL SGS to meet customer′s requirements.All workers are fully trained before going to production line.and Ensure 100% testing and inspecting before shipping .

Speed & Efficiency:

Concept to Design: < 3 business days

Goods lead time : 12-15 days

Rapid Prototyping: 4-7 days

Overseas Manufacturing

Utilized for larger production volumes and to ensure we can offer the most competitive pricing and Fast lead time to our customers
