7 Way 0.1Pitch Single Row Crimp Housing Backlight Switch With LED For Temperature Controller

It seems you're looking for information about a specific component: a 7-way 0.1 pitch single row crimp housing backlight switch with LED, typically used for temperature controllers. Here’s a brief overview:

Overview

• Type: 7-way crimp housing switch
• Pitch: 0.1 inches (2.54 mm)
• Configuration: Single row
• Backlight: Equipped with an LED for visibility
• Application: Commonly used in temperature controllers and other electronic devices

Features

1. Compact Design: The 0.1-inch pitch allows for a compact layout, making it suitable for space-constrained applications.
2. LED Backlight: Provides visibility in low-light conditions, enhancing user interface.
3. Durability: Typically made from robust materials to withstand repeated use.
4. Easy Installation: Crimp connections simplify wiring and assembly.

Applications

• Temperature control systems
• Home appliances
• Industrial equipment
• Automotive controls

Considerations

• Ensure compatibility with your specific circuit design.
• Check the voltage and current ratings to avoid overload.

Product Descriptions :

About Taida.pdf


Key benefits of this type of LED membrane panel include:

Compact, space-saving design due to the single-row layout
Secure integration through the crimp housing connector
Customizable lighting effects to enhance the user experience
Cost-effective manufacturing compared to mechanical switch alternatives
Durability and reliability of the membrane switch technology

Common membrane keypad structure choose :

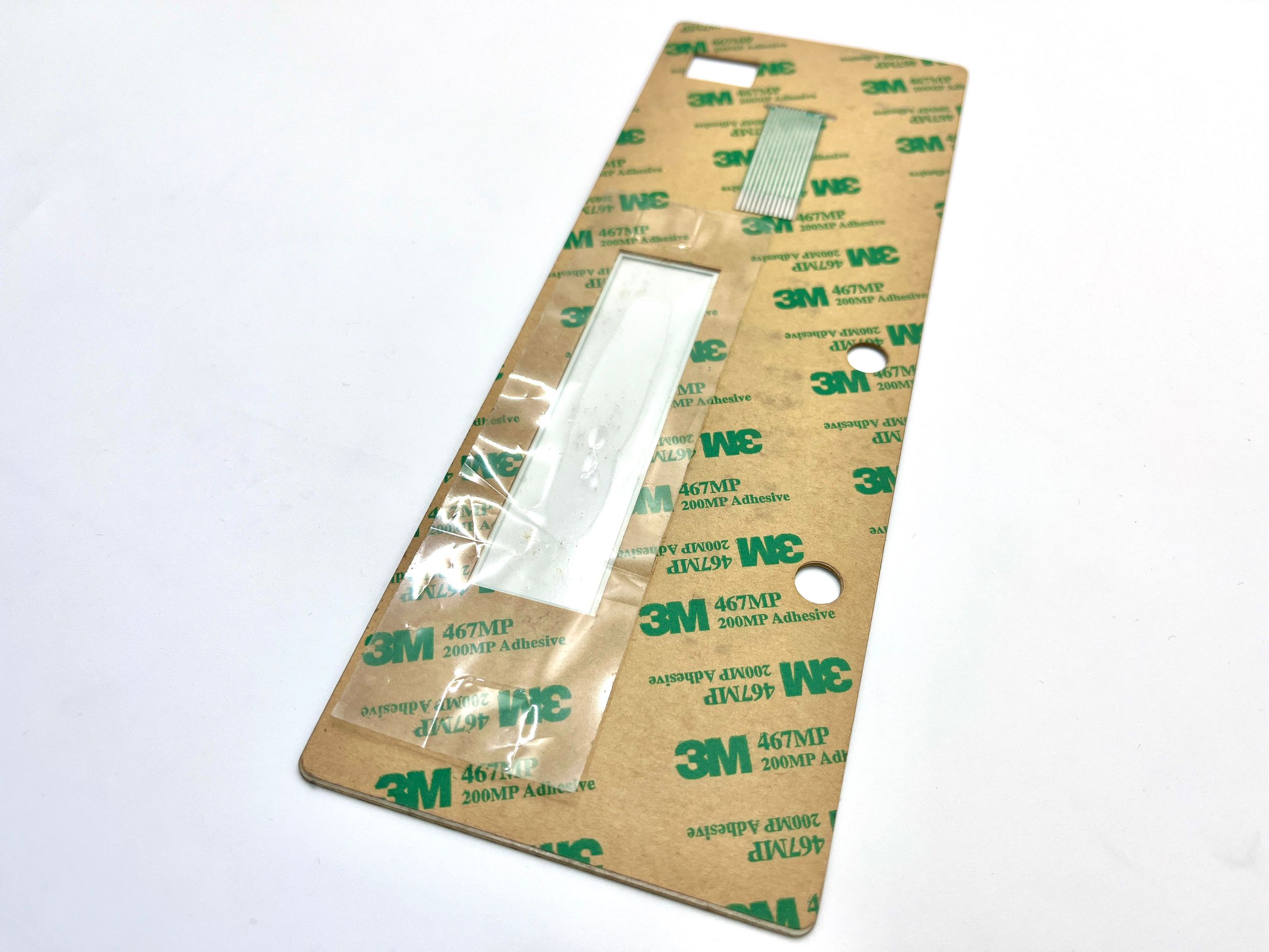

Other photo show :



How to order

• Send us the drawing ,spec or photo about your product or fill our quotation information table . Get Latest Quote
• Confirm order details and approved our artwork before sample ,confirm our sample before mass goods and Order PI will be sent
• we will send our artwork for your confirm within 3 days before sample making ,and sample lead time is 4-5 business days As usual .
mass goods :as common ,it is 7-10 business days ,which is based on our produce department schedule and product craft and order quantity

Taida is a factory and was founded in the 2010 year in China, which focus on the professional design and manufacture of Membrane Switch and Graphic overlays (including different many kinds membrane switch and graphic overlay ,such like LED ,FPC circuit ,waterproof and tactile ,PMMA ,protective film and so on )manufacturers,

Experience:

Taida and engineers have Highly over 15 years experienced on Membrane switch and graphic overlay designs, 500+ customers from worldwide such like USA,UK ,Germany and others , 1000+ new designs per year

Factory Strength and Production Capacity:

Over 2000 square meters of modern plant, spacious and bright clean workshop; more than 25 full Automatic and Semi-Automatic printing machine and other professional Automation equipment,such like testing machine ,UV machine and so on , Taida’ capability has reached 300, 000PCS/month in a very short period since company established.

Quality Control and Ensure :

Taida has got certification of ISO9001: 2000, and also the accreditation for RoHS ,REACH ,UL SGS to meet customer′s requirements.All workers are fully trained before going to production line.and Ensure 100% testing and inspecting before shipping .

Speed & Efficiency:

Concept to Design: < 3 business days

Goods lead time : 12-15 days

Rapid Prototyping: 4-7 days

Overseas Manufacturing

Utilized for larger production volumes and to ensure we can offer the most competitive pricing and Fast lead time to our customers
